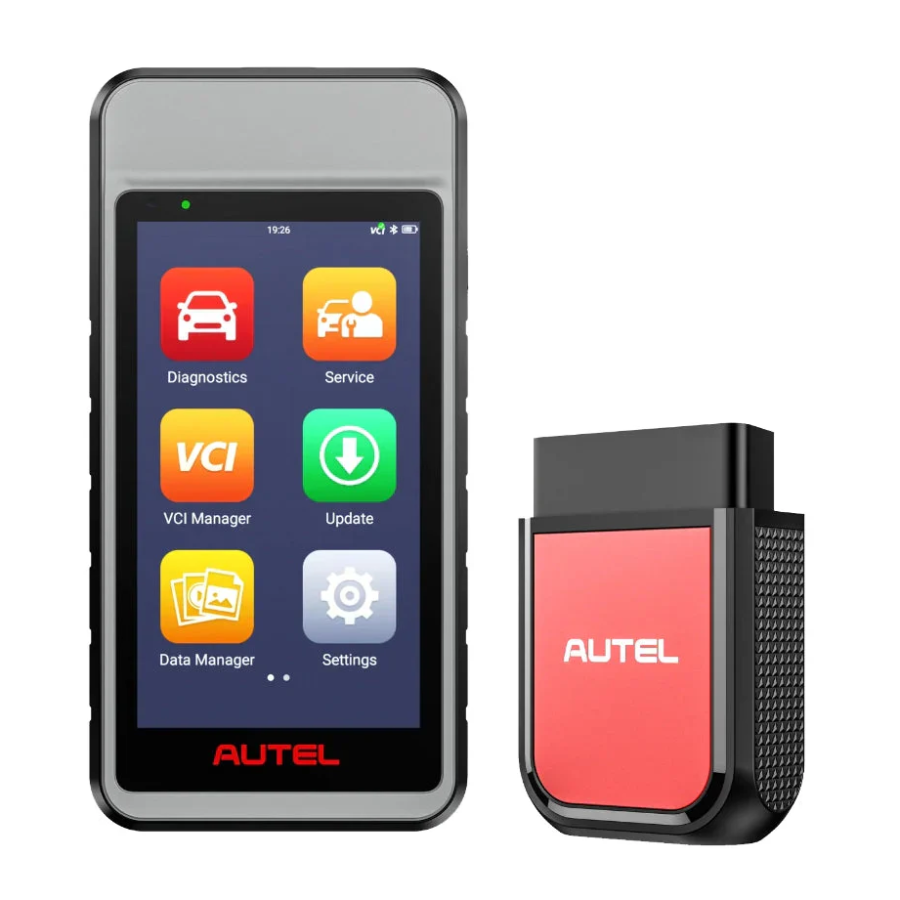

Autel MaxiDiag MD906 Pro

Key Features

Full-System Diagnostics

• Access and test all major systems including Engine, Transmission, ABS, SRS, EPB, and more

• Supports U.S., Asian, European, and Chinese vehicles including current-year models

• Enhanced Mode 6 diagnostics with AutoScan, DTC reading, live data streaming, and freeze-frame viewing

11 Essential Maintenance Functions
Perform critical maintenance services directly from the tool (functions vary by make and model):

• Oil reset

• Brake bleeding

• Injector coding

• Steering angle sensor (SAS) calibration

• Throttle adaptation

• EPB reset

• Battery management system (BMS) reset

• TPMS relearn

• DPF regeneration

• Adaptive front-lighting system (AFS) headlamp reset

• Air/fuel ratio calibration

Future-Ready Connectivity

• Wireless Bluetooth diagnostics via V150 Lite VCI module

• CAN FD protocol support for modern vehicle architectures

• Secure gateway access for FCA, SFD, Nissan, and more (gateway module may be required)

Streamlined Hardware & Interface

• 5.5″ Android 9 touchscreen for intuitive operation

• 64 GB internal storage for data and reports

• 5,000 mAh battery for extended use

• Free lifetime over-the-air (OTA) updates to stay current with new models and features

Why Choose the MD906 Pro?

• Comprehensive capability: Full-system diagnostics and maintenance functions

• Convenience and efficiency: Wireless Bluetooth connection and Android touchscreen ease

• Long-term value: Lifetime updates and modern vehicle protocol support

• Advanced tools: 11 essential maintenance functions for workshop-level servicing

Quick Specifications

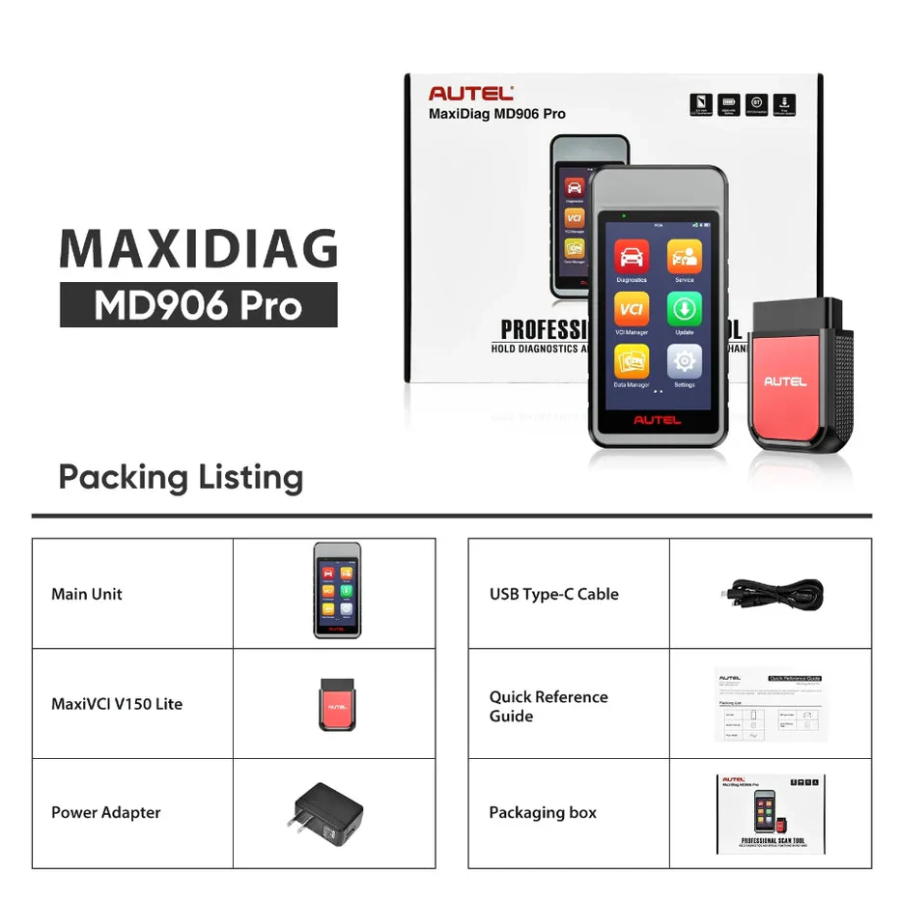

Package Includes

• 1 × Autel MaxiDiag MD906 Pro main unit

• 1 × MaxiVCI V150 Lite Bluetooth VCI module

• 1 × USB type-C cable

• 1 × Power adapter

• 1 × Quick reference guide

• 1 × Packaging box
