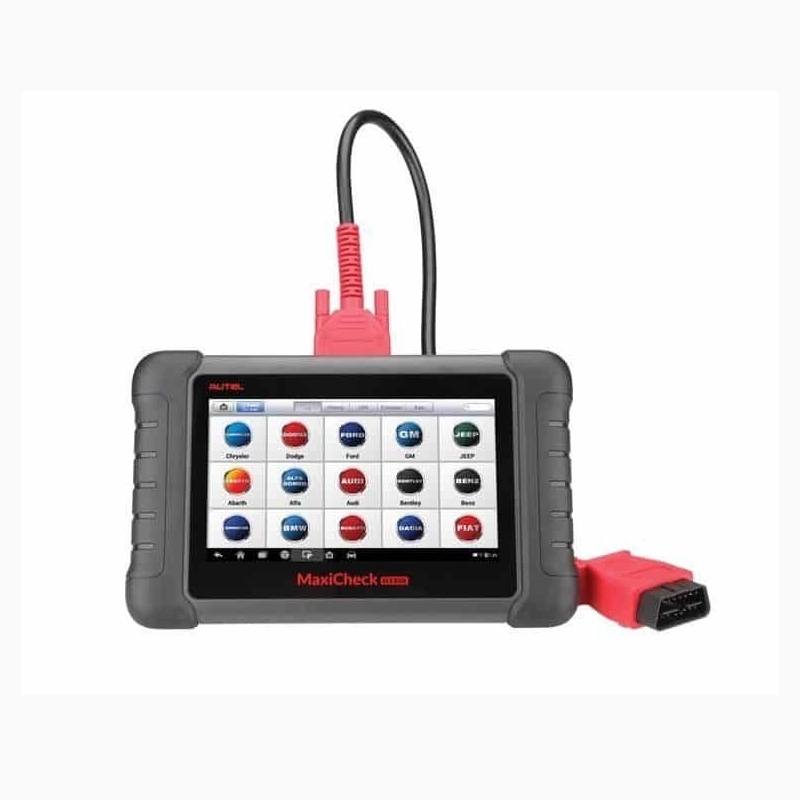

Autel mx808s Full System Diagnostic Scanner

As a professional automotive diagnostic scanner, Autel MX808S Can:

Read/clear trouble codes for all available systems

Display live data in text, graph & analog for easy data review

Auto VIN technology can automatically identify the vehicle’s make, model and year information in no time

Auto Scan all major systems

Reset service mileage and service intervals

Relearn parking brake pad after replacement

Support forced DPF regeneration and adjusting injectors

Support battery registration and reset



Main Functions

Read fault codes & provides a description

Clear fault codes & warning lights (e.g. airbag, ABS, engine light etc)

Service functions – interval light/oil reset light / EPB / injectors etc

Access to live data streams (oxygen sensor rich/lean indication, coolant temperature, mass air flow etc)



Features

Powertrain System- Read / Test / Clear trouble codes all modules

Body System – Read / Test / Clear trouble codes all modules

Chassis System- Read / Test / Clear trouble codes all modules

Info & Communication- Read / Test / Clear trouble codes all modules

Auto VIN Detection
Auto Scan all major systems

Live Data to test individual systems

Communicate with door modules, body controllers, electronic modules

Support all OBDII protocols and 10 test modes including Freeze Frame, Enhanced Mode 6, Vehicle Info, I/M Readiness, On-Board Monitor and Component Tests

Graph, record and playback freeze frame data



Service Functions

Oil Reset Service

EPB Service (Electronic Parking Brake)

BMS (Battery Management System)

SAS Service (Steering Angle Sensor)

DPF Service (Diesel Particulate Filter)

TPMS Service (Tire Pressure Monitor System)

IMMO Service (Immobilizer)

Brake Bleed

Injector Coding

Throttle

WIN DR ROOF

Seats

ABS Auto Bleed

ABS Brake Bleeding enables technicians and home mechanics to bleed air out of the ABS module and saves you time and money. Use this to first bleed the ABS module which will force any air into the brake lines. Then you can do a brake bleeding as usual.

Note: Your vehicles must be programmed by the manufacturer to perform auto-bleed. Please confirm with us if your vehicle has the auto bleed function.



Injector Coding

Just replaced a bad fuel injector?

You need to perform injector coding for the new injectors! Autel MX808 professional scan tool can program a new code to the engine ECU for accurate communication and Injection control.



Autel MX808 automotive scan tool has the capability to perform injector coding to:

-Control the fueling and optimize the engine performance to prevent fuel consumption increase or black smoke.

-Solve non-start issue(for newer systems, the vehicle will not start if you do not code in the injectors).

Record Live Data

MX808 scanner performs 4 modes for data viewing: Analog meter, Texts/List, Waveform, and Digital gauge for various vehicle control systems, such as engine, transmission, and ABS. Display live data in text, graph & analog for easy data review.

The live data streams are vividly displayed on its crisp screen, so you can discover the abnormal parameters intuitively and figure out which part is wrong quickly.

AUTO VIN & AUTO SCAN

MX808 diagnostic scanner adopts the latest VIN-based Auto VIN Technology that enables auto technicians or home mechanics to identify vehicle information, like brand, year, make, model and etc, at a single touch. With the Auto VIN and Auto Scan features combined, Autel MX808 can perform comprehensive diagnostics accurately and efficiently.

NOTE: Auto VIN feature does NOT work on all cars. You can always navigate your vehicle through the menu manually to perform diagnostics and services.

Key Fob Programming

Autel MX808 professional diagnostic tool has the capability to add a new key, delete lost keys and perform key fob learning.

Note: It can add new keys for low IMMO-grade vehicles only, like Asian cars. It does NOT support an all-key-lost situation.

Vehicle Coverage and Function?



This unit will cover nearly all manufacturers in the South African market.
And covers 80+ car makes globally

For detailed info, please visit the official Autel website to see Autel coverage

Select the tool, such as MX808, and click the search button.



Specifications

Autel MX808S

Works: All 1996 US-based, 2000 EU-based, and newer vehicles

Operating System(OS): Android 11

Processor: Cortex-A9 processor (1.5 GHz)

Display: 7-inch LCD capacitive touch screen with 1024×600 resolution

Memory: 64GB

Connectivity: Mini USB 2.0 USB 2.0 Wi-Fi Micro SD card (supports up to 32GB)

Audio Input/Output: Input: N/A Output: buzzer

Sensors: Ambient light sensor for brightness auto changing

Power and Battery: 3.7 V/5000 mAh lithium-polymer battery,
Charges via 5 VDC power supply

Tested Battery Life: Around 4.5 hours of continuous use

Power Consumption: 500 mA (LCD on with default brightness, Wi-Fi on) @3.7 V

Battery Charging Input: 5 V/1.5 A

Operating Temp: -10 to 60 C(14 to 140 F)

Storage Temp: -20 to 70 C (-4 to 158 F)

Operating Humidity: 5% – 95% non-condensing

Read/Clear Codes: Yes

Auto VIN Detection: Yes

Display live data in text: Yes

Support IMMO(Anti-theft matching) Functions: Yes

Oil Reset,EPB, BMS, SAS, DPF, ENG/AT/ABS/SRS Codes: Yes

Basic TPMS Service, ABS Bleeding, Injector Coding, Suspension Calibration: Yes

Freeze Frame Data: Yes

Battery registration and reset: Yes

Mode:10I/M Readiness: Yes

Live Data: Yes

Check Engine Light: Yes

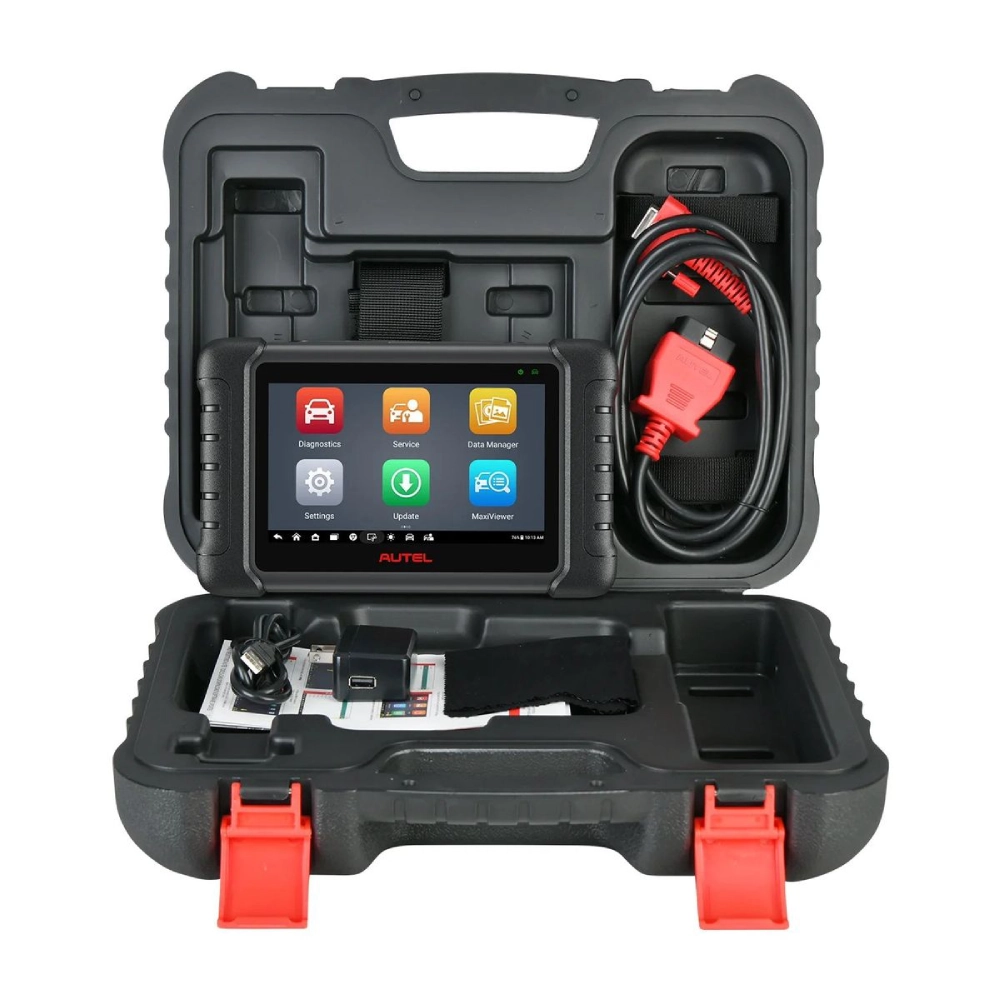

What’s in the box
1x MaxiDiag MX808S Tablet
1x USB charger
1x OBD2 Main cable
1x User Manuel
1x Quick reference guide
