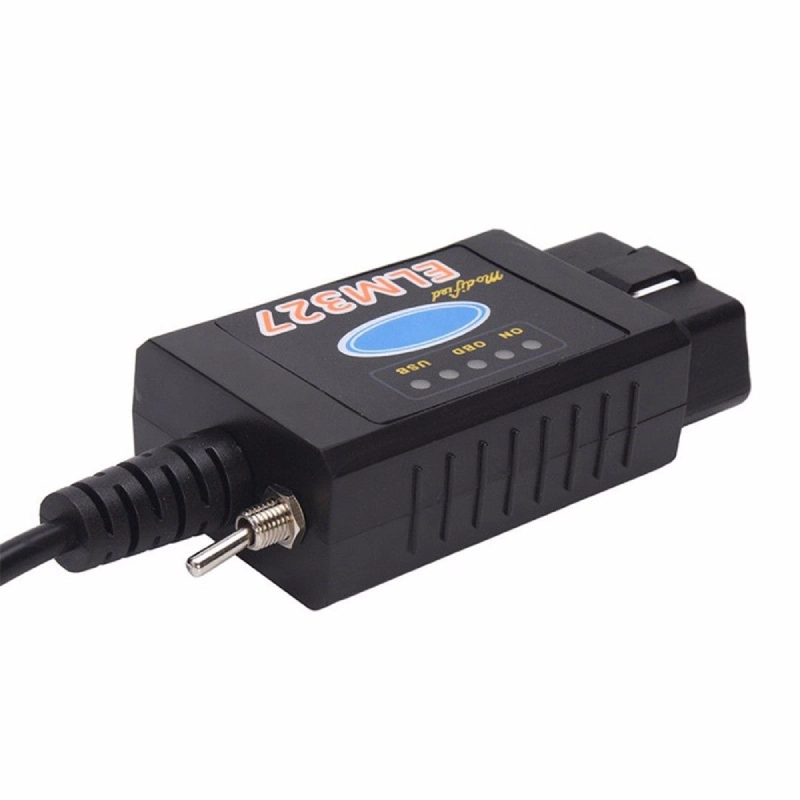

FORD ELM327 Interface USB OBDII Auto Diagnostic Scanner Tool with Switch

This ELM327 has full support to for Ford specific diagnostic protocol MS-CAN. Majority of modern Ford modules are accessible only through this protocol.

Features:

• Diagnostic and Testing Capabilities:Read/erase fault codes from all modules (including OBD2/EOBD).
  Access vehicle modules on both HS-CAN and MS-CAN modes.
  Read vehicle configuration data.
  Actuator tests and Live Data monitoring.
  Injector coding and adaptations.
• Service & Maintenance:Force DPF (Diesel Particulate Filter) regeneration.
  Service procedures for comprehensive vehicle maintenance.
• Programming & Coding:Software updates, programming, and coding capabilities.
• Non-Contact Voltage Detection (NCV):Detects voltage without direct contact and provides an audible buzzer alert.
• Measuring Capabilities:AC/DC Voltage, Resistance, Capacitance, and Hertz (Frequency).
  Induction detection and Zero Fire detection (live and neutral wire identification).
• Data Management:Data retention for saving measurement results.
• Convenience & Safety Features:Sound/light alarm for alerts.
  Automatic shut-down for battery conservation.
  Backlit bright screen for easy reading in low light.
  Intelligent “Auto” function for varied voltages.

Specifications:

• Supported Protocols:
  ISO Standards:ISO15765-4 (CAN), ISO14230-4 (KWP), ISO9141-2.SAE Standards:SAE J1850 VPW (for GM vehicles), SAE J1850 PWM (for Ford vehicles).
  SAE J1939 CAN (29-bit ID, 250 Kbaud).

  Ford-Specific Protocols:Ford CAN HS, MS CAN, Ford 9141.

  User-Defined CAN Protocols:USER1 CAN (11-bit ID, 125 Kbaud).
  USER2 CAN (11-bit ID, 50 Kbaud).

• Supported Modules:GEM, BCM, PCM, IPC, HEC, RCM, SASM, KVM, IPMA, ACM, SRM, SODL, SODR, FACM, TCM, ABS, DDM, PDM, RDDM, RPDM, AHCM, PAM, ACU, CCM, EHPAS, PSCM, HCM.
• Measurement Ranges:DC Voltage: 4V, 40V, 400V, 600V.
  AC Voltage: 4V, 40V, 400V, 600V.
  Capacitance: 4nF, 40nF, 400nF, 4 F, 40 F, 400 F, 4mF.
  Resistance: 4k , 40k , 400k , 4M , 40M .
  Frequency: 40Hz, 400Hz, 4kHz, 40kHz, 400kHz, 4MHz.
• Power Source: Requires 2 x AAA Batteries (not included).
• Supported Operating Systems:Windows 7, XP, Vista, Windows 2000 (32-bit & 64-bit).

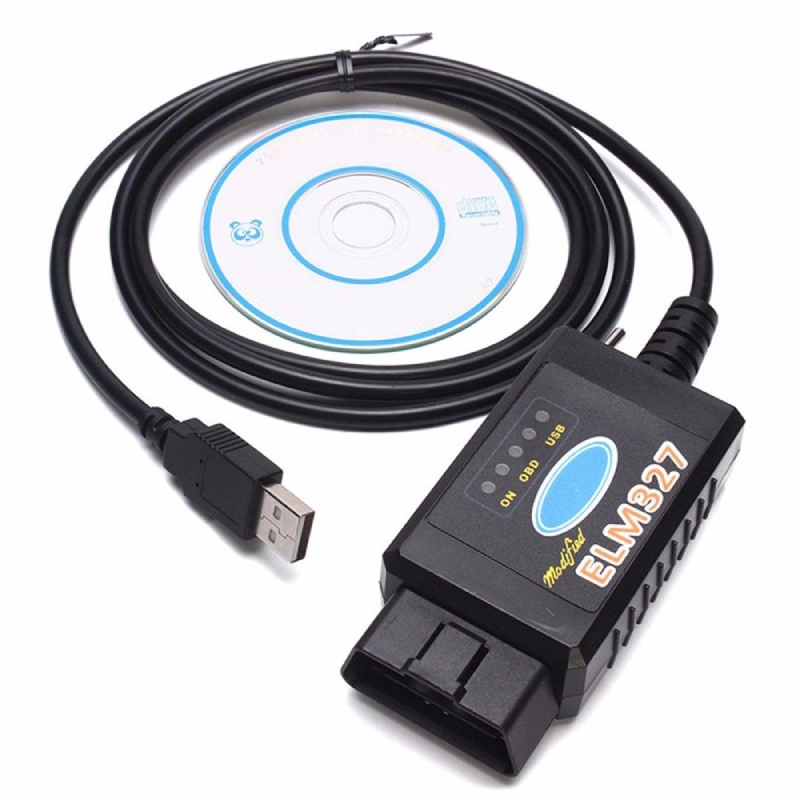

• Supported Software:Included: ELMconfig, FoCCCus, ELM ScanMaster (on CD).
  Downloadable: Forscan (latest free version available online).
  Compatibility: Most OBD2/EOBD software.

What’s in the box
1 x Diagnostic Scanner Tool
