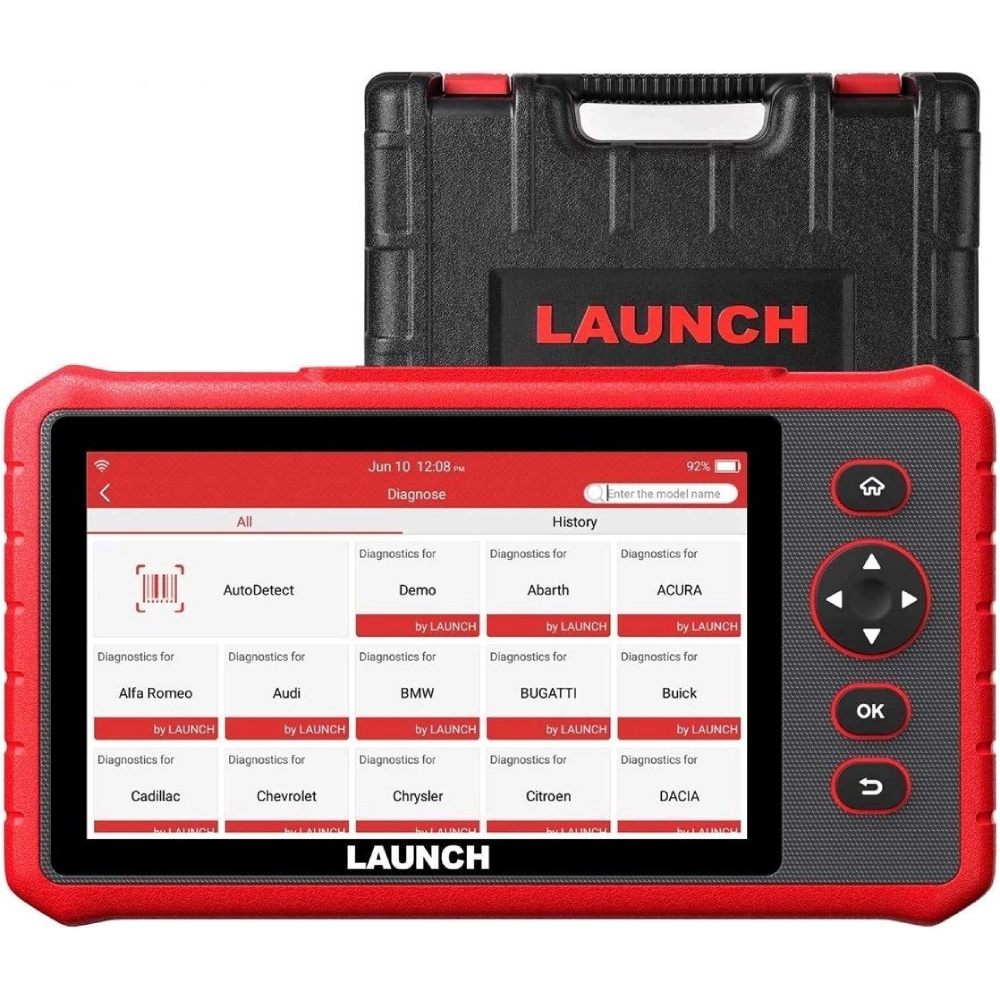

Launch CRP909X OBD2 Elite – Full System Diagnostic

2023 New Elite Version with added Features and Functions

Launch CRP909X Professional Car Diagnostic Scanner Auto OBD2 Code Reader with ALL System Diagnostics & 28 Reset Services & FULL OBDII Functions & WIFI Update & Easy and quick setup by Launch.

Launch CRP909X Car Diagnostic Tablet Scanner is the newest evolutionary Android smart solution for 12V passenger car, light duty, pickup truck diagnosis & maintenance.

it’s designed for car repair workshops, car beauty service parlours, auto mechanics and DIY car owners’ auto scanners.
This CRP909X OBD2 Scanner support All systems Diagnoses, 28 Reset Function, and All OBD-II functions.
Launch CRP909X Automotive Diagnostic Tool Provides 28 commonly-used service functions: Oil Lamp Reset, Brake Pad Reset, TPMS Reset, Battery Matching, Injector Coding, Throttle Adaptation, D-P-F Reset, IMMO Service, Steering Angle Reset, ABS Brake Bleeding, Anti-Theft Matching, AFS Headlamp Reset, Sunroof Reset, Suspension Calibration, Gearbox Reset, Gear Learning, Engine Power Balance Monitoring, High Voltage Battery Diagnostics.

Launch CRP909X Support Diagnose Car Full System

This option allows you to detect whether the car’s full system parameters are normal or not. It mainly includes Drive System, Chassis System, Body System, and Electrical system.

PCM(Drive System): Engine, Transmission, Transfer case, Electrical Machine Electronics, Fuel Pump, Gear, and more
2Chassis System: Accumulator Management Electronics, Steering, Integrated Chassis Management, Tyre Pressure Control, Active Cruise Control, Braking System, Suspension, TPMS and more

-BCM(Body System): SRS Airbag, Camera, Audio Radio, Gateway, Cluster Dashboard, Rain Sensors, Charging Interface Module, Parking Assistance, Power Control Unit, Touch box, Light, Battery Charging System, Head-up Display, Wipe Control System, Roof, Seat & Door Motor system, Immobilizer, ABS ESP system, Air Condition. Electric Windows, Telephone, and more

Electrical System Including Centralized control system for engine and power transmission, Chassis integrated control and safety system, Intelligent body electronic system, Communication and information/entertainment system. Read and erase codes for all available systems, turn off the MIL light (Indicator light), and display live data in text, graph & analogue for easy data review.

-Launch CRP909X Support Below 28+ Kinds Maintenance Functions:

In addition to its amazing & powerful diagnostic function, CRP909X also features various service functions. What do the most commonly performed service functions contain?

Oil Lamp Reset Service Allows you to perform a reset for a new calculation of the Engine Oil Life system once changed the oil.
EPB Electronic Park Brake Reset It is important in the maintenance of the electronic braking system’s safety and efficiency.
BAT battery service Allows the scan tool to evaluate the battery charge state, monitor the close-circuit current, register the battery replacement, and activate the rest state of the vehicle.

DPF Diesel Particulate Filter Reset especially works for Diesel Particulate Filter systems with DPF regeneration, DPF component replacement teach-in and DPF teach-in after replacing the engine control unit.

SAS Steering Angel Sensor Reset Helps clear the fault steering angle sensor memories and plays an important role in the steering angle sensor calibration.

TPMS Tire Pressure Monitoring System Reset Makes sense in displaying sensor IDs from the vehicles, inputting TPMS sensor replacement IDs and testing sensors.

IMMO Key Programming The unique car key programming and read pin code function is mainly used to disable the lost vehicle keys and program a new replacement key fob.

ABS Bleeding ABS brake bleeding to get a firm brake pad after air exhaustion after repairing the ABS pump system.
Sunroof Reset The sunroof needs to be reset when the sunroof control unit has a communication problem or changes.
Suspension Reset Try resetting the electronic suspension air ride with the massage system close all doors koeo flip through the messages system go to suspension reset or on off.

Gearbox (Transmission )Reset Procedure Reset Transmission Adaptive Learning DIY. Start the car and drive. Once you perform this procedure the Engine Control Unit () and Transmission Control Unit (TCU) will work together to learn how you drive by monitoring your driving pattern. After you follow this programming method of the TCU / drive the car.

AFS Headlamp Reset ‘AFS’ means Adaptive Front lighting System (at night with the Bi-Xenon headlights) it swivels on either side, pressing that button means they stay pointing straight ahead and don’t turn when you turn the steering wheel.

Injector Coding Leaking injectors and some dead injectors can be missed even when an injector is disabled. Other problems with the ignition system and mechanical components also may not show an rpm loss when an injector is turned off.

Throttle Adaptation The throttle body is a tube containing a pivoting flat valve (butterfly) that is used to control the amount of air entering an engine. In an electronic fuel-injected car, a throttle position sensor and airflow sensor communicate with the computer, which supplies the corresponding amount of fuel needed at the injectors. It must need re-learning the throttle sensor position after clearing or repair.

Gear Learning The scan tool monitors certain camshaft position sensor signals to determine if all conditions are met to continue with the procedure for Engine running.

AC System Relearn/Initialization
Ad Blue Reset
A/F Reset
Coolant Bleed
Language Change
NOx Sensor Reset
Seats Calibration
Stop/Start Reset
Transport Mode
Tyre Reset
Windows Calibration

Full 10 Mode OBDII/EOBD/JOBD Car Diagnostics Functions:

This scanner supports all 10 test modes for OBD-II cars which are great for daily repair work. The table below describes the purpose of each mode of operation:

Reading Codes: Show the detailed description of the Diagnostic Trouble Code (DTCs)
Erasing Codes & Reset: Turns off Check Engine Light (MIL), clears codes and resets monitors.
Data Stream: Reads and displays live /PCM data stream, plotting functions graphically and stores freeze frame data.
I/M Readiness Status: This shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing.

Read Live Data Stream: Show the information of continuous data stream from a vehicle in a live graphic (waveform) display.
View Freeze Frame Data: Check the certain vehicle conditions which are recorded by the onboard computer at the time the emission-related fault occurs.

O2 Sensor Test: Allows retrieval and viewing of O2 sensor monitor test results for the most recently performed tests from the vehicle’s onboard computer.

On-Board Monitor Test: Retrieves and displays test results for emission-related powertrain components and systems.
Read Vehicle Information: Display the information such as VIN (Vehicle Identification Number), CID (Calibration ID) and CVN (Calibration verification number), etc.

Component Test: Certain vehicle components can be actuated by commands sent from the scanner to test their operability.

Professional Fast Identifies VIN Number:

Once connected with the car OBD2 port, CRP909X will Auto Detect the car Vin number. Give you quick access to start the vehicle system detection.

Perfect Performs Vehicle Battery Analysis

For 12V cars, SUVs, Van, Light Truck, Pickup. Detect real-time data from 12V batteries and display BATTERY DATA with fluctuations ranging from 8V to 16V. The discharge voltage of a normal battery is about 12V, the starting voltage is generally 12V, and the charging voltage is about 14V.

One-Key I/M Checking

It supports one-key I/M checking for all available emission systems. Help your car pass the emission test more simpler.

Other Feature of LAUNCH X431 CRP909X

DTC Library: Allows you to retrieve the definition of the diagnostic trouble code from the abundant DTC database.
Diagnostic Feedback: Use this option to submit the vehicle issue to us for analysis and the report can be saved offline.
Diagnose Report Share & Printed: you can share the diagnose report to your email, then printed it via computer.
Sensitive Touch & Keypad input are supported
Android 7.1 systems. 7″ Touch Screen, 6000mAh battery
Global vehicle coverage. Including Indian and Russian car brands. And many more
The quick and easy setup provided by Launch Supplier Obd Dynamics

Note:

If you buy CRP909X now, you may need to update it to get these functions. The update process is easy. After connecting the scanner to WIFI, click the “upgrade” on the menu, and then choose the software you want to update this scanner.
One-click update, now with the online update to 2 years

Please Note: Electronics And Software Are Not Refundable (Please Read The Ad Carefully Before Purchasing)

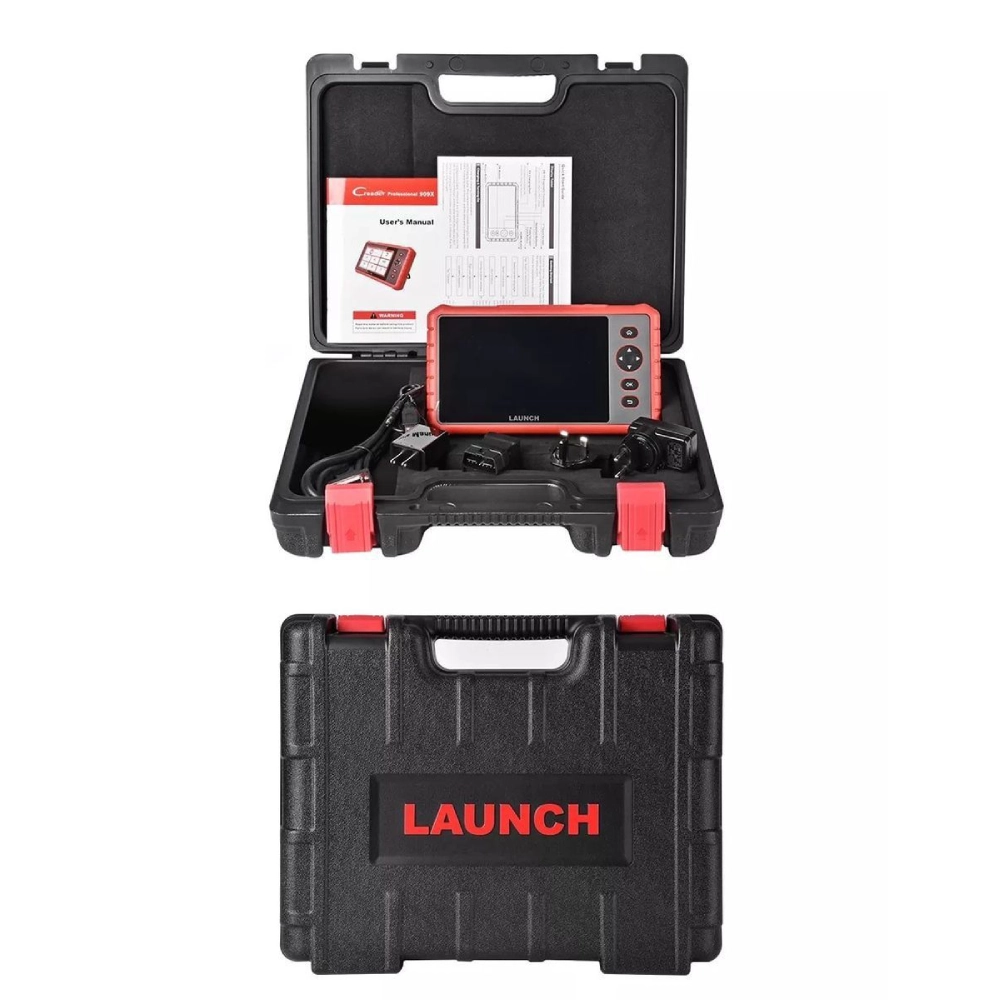

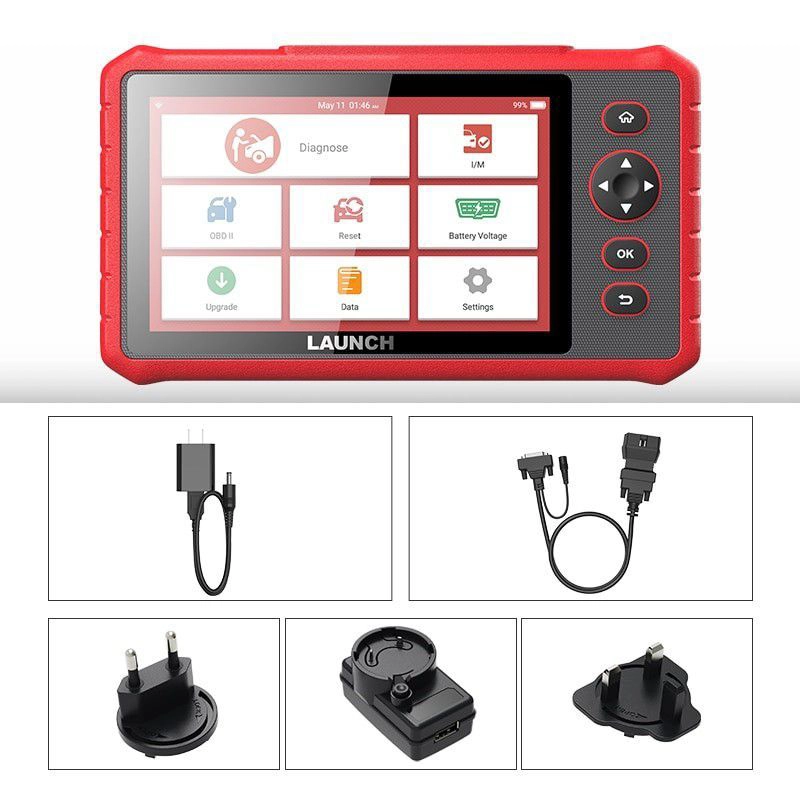

What’s in the box
1 X CRP909X Android Tablet Machine
1 X OBD-II Diagnostic Cable
1 X DC Power Charging Cable
1 X User Manual (including Quick Setup instructions by Obd Dynamics)
1 X Hard carry bag
