TOPDON ArtiDiag800 BT All System

Description

TOPDON ArtiDiag800 BT All System + 28 Reset Services

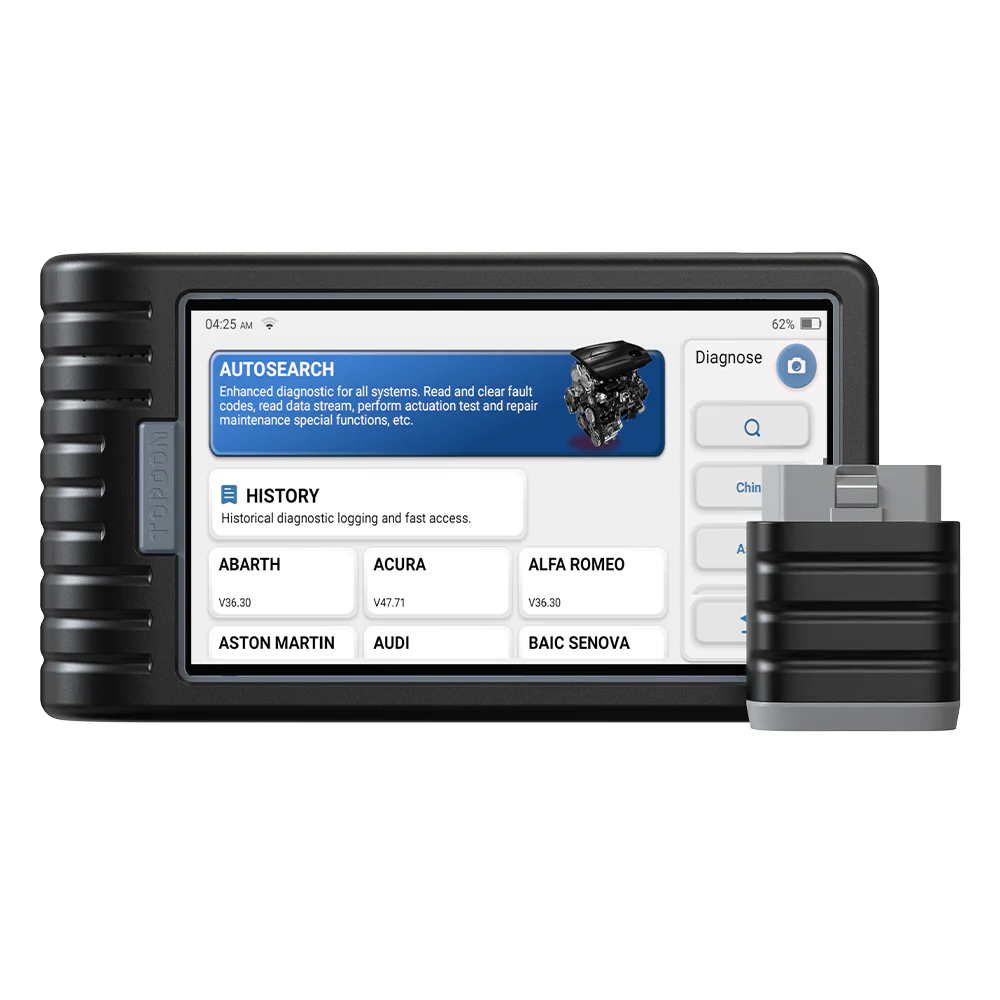

TOPDON ArtiDiag800 BT is designed with technicians in mind. This 5.99” Android tablet-style scanner boasts high-quality features with easy workflow to tackle the common and complex vehicle diagnostic issues for most modern vehicles worldwide. The Bluetooth VCI dongle has been included allowing wireless diagnostics for optimal efficiency.

2021 Global Version, No IP limited.

It is global version, no IP limited. You can use it everywhere in the world.

1 Years Free Update Online

It is easy to do update by One-Click on the tablet via wifi connection. All supported car brands software is included, you don’t need to buy software separately. After two years, you can still use it without update. It will not be locked. If you want to buy update service after two years, we can give you a discount on it.

All Systems Diagnoses

This diagnostic scanner can establish a data link to all systems and subsystems of the vehicle being serviced to:

Retrieve ECU information of the tested control units including unit type, version numbers, and other specifications, etc.
Read and erase DTCs to locate problem areas and clear the codes.
View Live Data of each parameter item.

The following is a list of modern vehicle systems that this scan tool can get access to:

Engines

Auto Transmission

Airbags

Immobilizer

Key Coding

ABS

Cruise Control

Instruments

Self Levelling Suspension systems

Seats

Doors

Gateway

Steering Angle

Air Suspension

Body Systems

Electronic Power Steering & Motor Assisted

Power Steering

Tyre Pressure

Rain Sensors

4WD System -Stabilizer

Intelligent Parking Assist

Door Motors

Audio Systems

Air Conditioning

Tiptronic

Anti-Theft

Soft Top

Headlamp Levelling

Central Locking

Automatic Clutch

DPF Reset

Electric Windows

Plip Programming

Heated Rear Window

Xenon Headlights

Wash Wipe

Fuel Burning Heater

Transfer Box

Seat Memory

Oil Life Service Reset

Sliding Doors

Electronic Throttle

Navigation System

Rollover Sensor

Cruise Control

Multi-Function Steering Wheel

Aux Heating

Electronic Parking Brake

Clutch Electronics … and more.

This comprehensive scanning process is able to locate the faulty systems and retrieve the DTCs related easily. So you can work on all parts of the vehicle systems to enhance the performance, save energy, reduce emissions, and everything else.

28 Special Reset Functions

1.Maintenance Light Reset

This function enables you to reset the oil service lamp for the engine oil life system, which calculates an optimal oil life change interval depending on the vehicle driving conditions and weather events.

2.Steering Angle Reset

This function can reset the steering angle to zero to keep the car running straight

3.Injector Coding

This function can write injector actual code or rewrite code in the ECU to the injector code of the corresponding cylinder, so as to have more accurately control or correct cylinder injection quantity.

4.Battery Matching

This function can reset the monitoring unit of the car battery, by clearing the original breakdown information about the lack of battery power to rematch the battery.

ABS Bleeding

-Get a firm brake pad after air exhaustion.

6.Throttle Matching

This function can utilize the car decoder to initialize the throttle actuator so that the learning value of the ECU returns to the initial state. By doing so, the movement of the throttle (or idle motor) can be more accurately controlled, thus adjusting the intake volume.

7.Electronic Parking Brake Reset

This function helps you to replace and reset the brake pad.

8.DPF Regeneration

This function can help remove particulate matter from the trap by using combustion oxidation methods to keep the performance of the trap stable.

9.Anti-theft Matching

This function can match the anti-theft key after replacing the ignition key, ignition switch, instrument cluster, engine control unit (ECU), body control module (BCM), and remote-control battery

10.Tire Pressure Reset

This function can reset the tire pressure and turn off the tire pressure fault indicator when the car tire pressure fault indicator light is on.

11.Suspension Level Calibration

This function can adjust the vehicle body height sensor for level calibration after replacing the vehicle height sensor or control module in the air suspension system, or when the vehicle level is not correct.

12.Headlight Matching

This function can initialize the adaptive headlight system. The headlight system can decide when to turn on the headlights based on the ambient light intensity. It can also monitor the vehicle’s driving speed, body posture, etc., and adjust the headlight lighting angle timely.

13.Gearbox Matching

This function can complete the self-learning of the gearbox and improve the shift quality when the gearbox is disassembled or repaired which may cause shifting delay or car impact.

14.Sunroof Initialization

This function can set the sunroof lock off, close in rain, memory function of sliding/tilting sunroof, outside temperature threshold, etc.

15.EGR Adaption

This function can learn the EGR (Exhaust Gas Recirculation) valve after it is cleaned or replaced.

16.Tooth Learning

This function can perform tooth learning for the car, to turn off the MIL
and other more ……

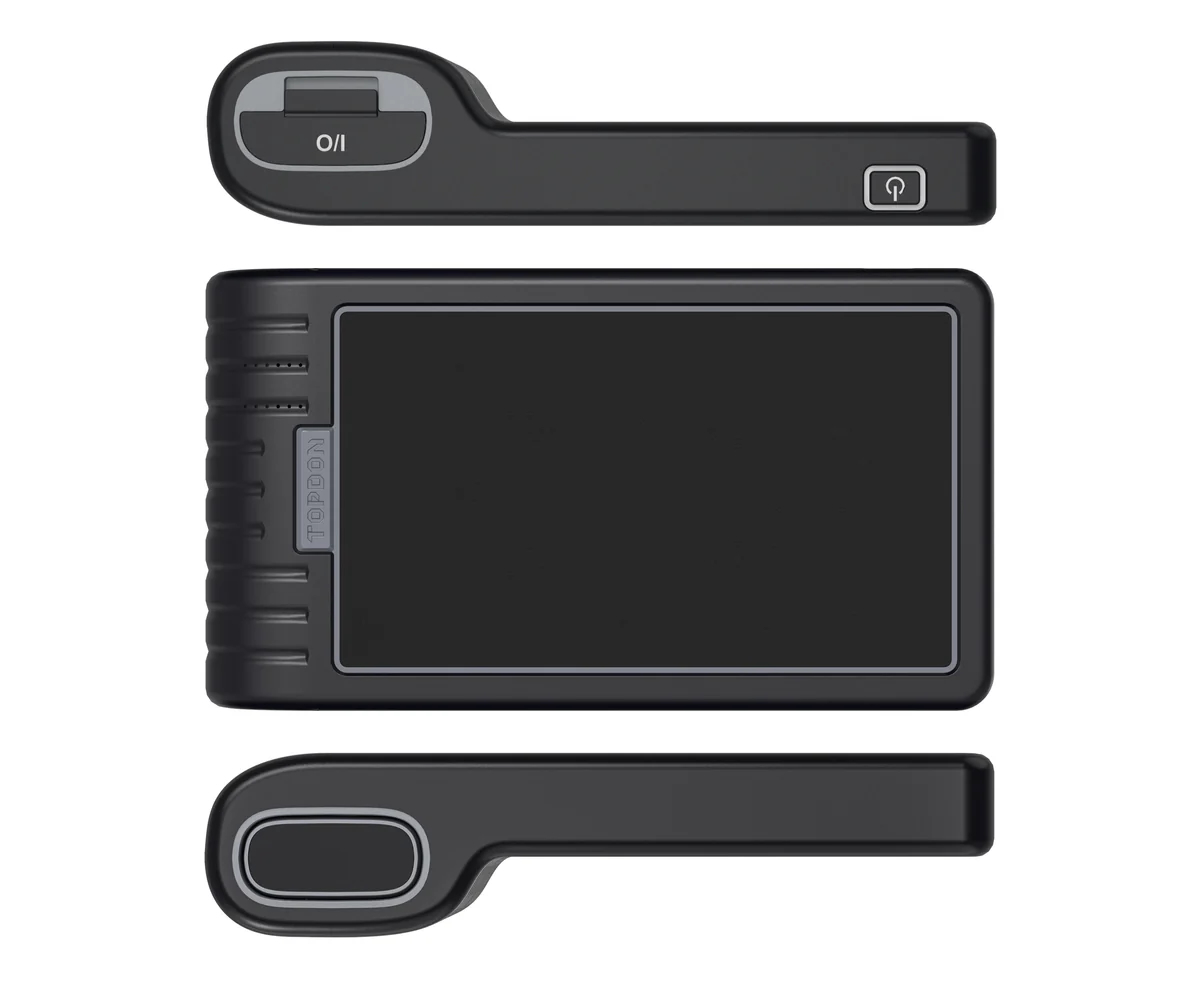

TOPDON ArtiDiag800 BT Tablet

– Battery Capacity: 3100mAh/7.6V
– Screen Size: 5.99 inches
– Resolution: 720*1440 Pixels
– Working Voltage: 5V
– Working Current: ?2.5A
– Working Environment: 32 ? ~122 ? (0? ~50? )
– Storage Environment: -4 ? ~140 ? (-20? ~60? )

TOPDON ArtiDiag800 BT Diagnostic VCI Dongle

– Working Voltage: 12V
– Working Current: ?60mA
– Working Environment: 14 ? ~122 ? (-10? ~50?)

What’s in the box
1 x ArtiDiag800 BT
1 x Bluetooth VCI Dongle (Pre-installed in the Unit)
1 x Charging Cable
1 x Charging Adapter
1 x Passport Envelope
1 x User Manual
