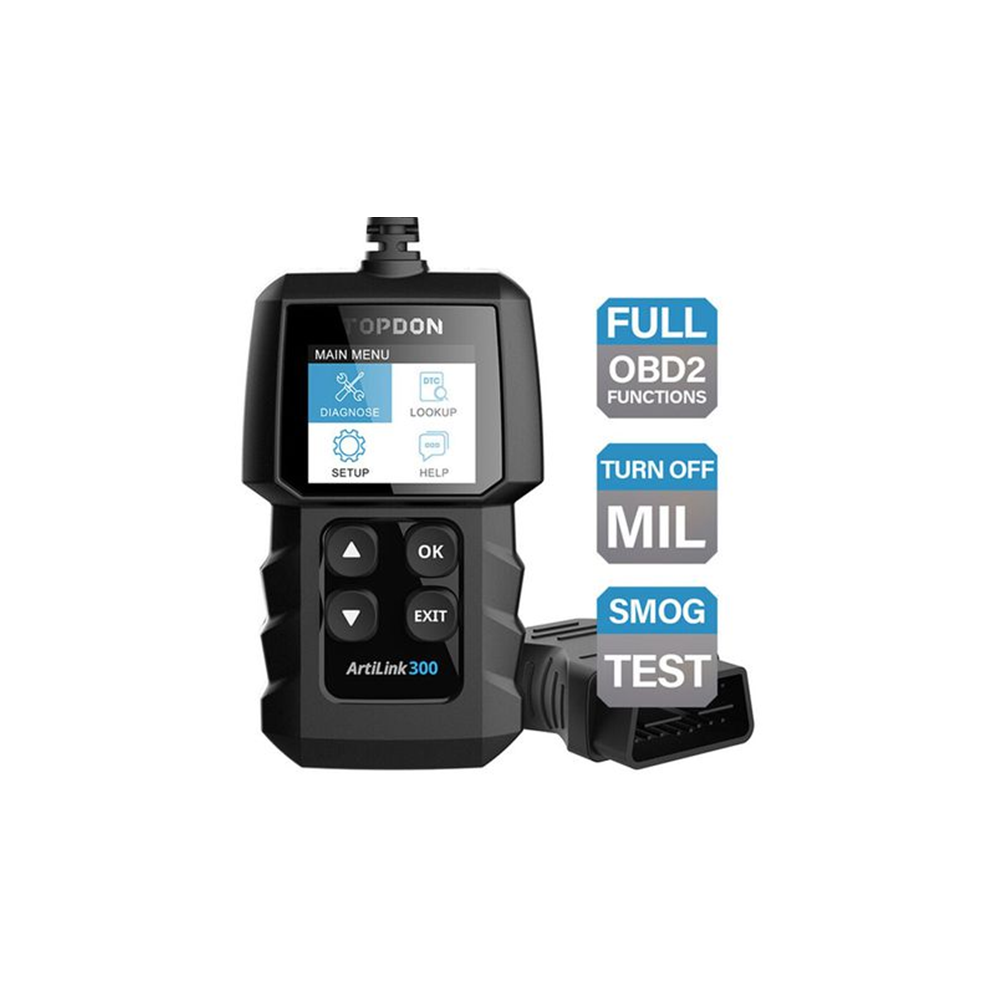

Topdon ArtiLink 300 Automotive OBD2 Engine Scanner

Description

Topdon ArtiLink 300 Automotive ENGINE OBD2 Scan Tool And Code Reader

Please Note:

Electronics And Software Are Not Refundable (Please Read The Ad Carefully Before Purchasing)

The TOPDON ArtiLink 300 Is A Quick, Affordable OBD2 ENGINE CODE READER Featuring All 10 Modes Of the OBD2 ENGINE Test, DTC Lookup, Plug-And-Play Function, And Color Display. This OBD2 Scanner Enables Entry-Level And DIY Users To Perform Pre-Inspections For Smog Tests, Figure Out The Emission Issues, And Reset The Check Engine Light.

Topdon ArtiLink 300 Features:

Works On Most 1996 And Newer Vehicles (CAN, ISO9141, KWP2000, J1850 PWM, J1850 VPW) Worldwide
Features The Full Obd2 Functionalities At A Fraction Of The Price Of Competitors
Retrieves generic (P0, P2, P3, And U0), Manufacturer Specific (P1, P3, And U1) Codes, And Pending Codes
Easily Determines The Cause Of The Malfunction Indicator Light (MIL)
Turns Off Malfunction Indicator Light (MIL), Clears Codes And Resets Monitors
Views Freeze Frame Data
Reads Live PCM Data Stream
Displays Monitor And I/M Readiness Status (Emissions)
Supports Valuable O2 Sensor Test
On-Board Monitor Test
EVAP System Test (Mode 6, 8)
Retrieves Vehicle information (VIN, CIN And CVN)
DTC LookUp Library
Multilingual Menu (7): English, French, German, Spanish, Portuguese, Italian, Russian
Extremely Easy To Use And Highly Reliable.
Preparing For State Emissions Tests
Gain Insight Into Engine Health And Performance.
Compatible With All The OBD2 Protocols: KWP2000, ISO9141, J1850 VPW, J1850 PWM, CAN (Controller Area Network)
Bullet Points

Read Codes:

Identifies Which Section Of The Emission Control System Has Malfunctioned. You’ll Get A General Idea Of What Normally Causes The Code, And Schedule A Proper Repair At A More Convenient Time.

Erase Codes:

Erases The Codes From The Vehicle After Retrieving Codes From The Vehicle, And Certain Repairs Have Been Carried Out. (ON THE ENGINE ONLY)

I/M Readiness:

Checks Whether Or Not The Various Emissions-Related Systems On The Vehicle Are Operating Properly, And Are Ready For Inspection And Maintenance Testing. To Help Pass The Emission Test, And Tell If It’s The Time To Have Vehicle Maintenance.
View Freeze Frame:

Takes A Snapshot Of The Operating Conditions Emission-Related Fault. These Maintenance Alerts Identifying The Problem Easily.

O2 Sensor Test:

Retrieves O2 Sensor Monitor Test Results Of The Most Recently Completed Tests From The Vehicle’s On-Board Computer. To Improve The Vehicle’s Performance And Fuel-Efficient. Replace The Defective O2 Sensor For Preventing Possible Damage To The Catalytic Converter. The Latter May Cost Thousands Of Dollars To Replace.

On-Board Monitor Test:

Retrieves Test Results For Emission-Related Powertrain Components And Systems That Are Not Continuously Monitored. To See If The Engine Has Any Misfire Or Compression Problems On A Particular Cylinder, Which Aren’t Severe Enough To Trigger A Check Engine Light. You Can Save A Lot Of Guesswork, And Prevent The Emerging Issues From Causing A Real Driving Problem, With No Need To Wait For Days For Certain OBDII Self-Tests To Run, And Possibly Turn The Check Engine Light On.

EVAP System Test:

Initiates A Leak Test For The Vehicle’s EVAP System. You Can Start This Test To Prevent Fuel From Evaporating Out Of The Tank And Contributing To Smog.

Vehicle Info:

Retrieves A List Of Information (Vehicle Identification Number, Calibration ID, And Calibration Verification Number). This Is Highly Valuable For Record Purposes Or Car Tracking.

Data Stream:

Retrieves And Displays Live Data And Parameters From The Vehicle’s ECU. To Show A Long List Of All The Available Data Values As Engine RPM, Vehicle Speed, Air Flow, Engine Load, Fuel Pressure, Fuel Trim Value, Engine Coolant Temperature, Ignition Timing Advance, Or Closed-Loop Status.

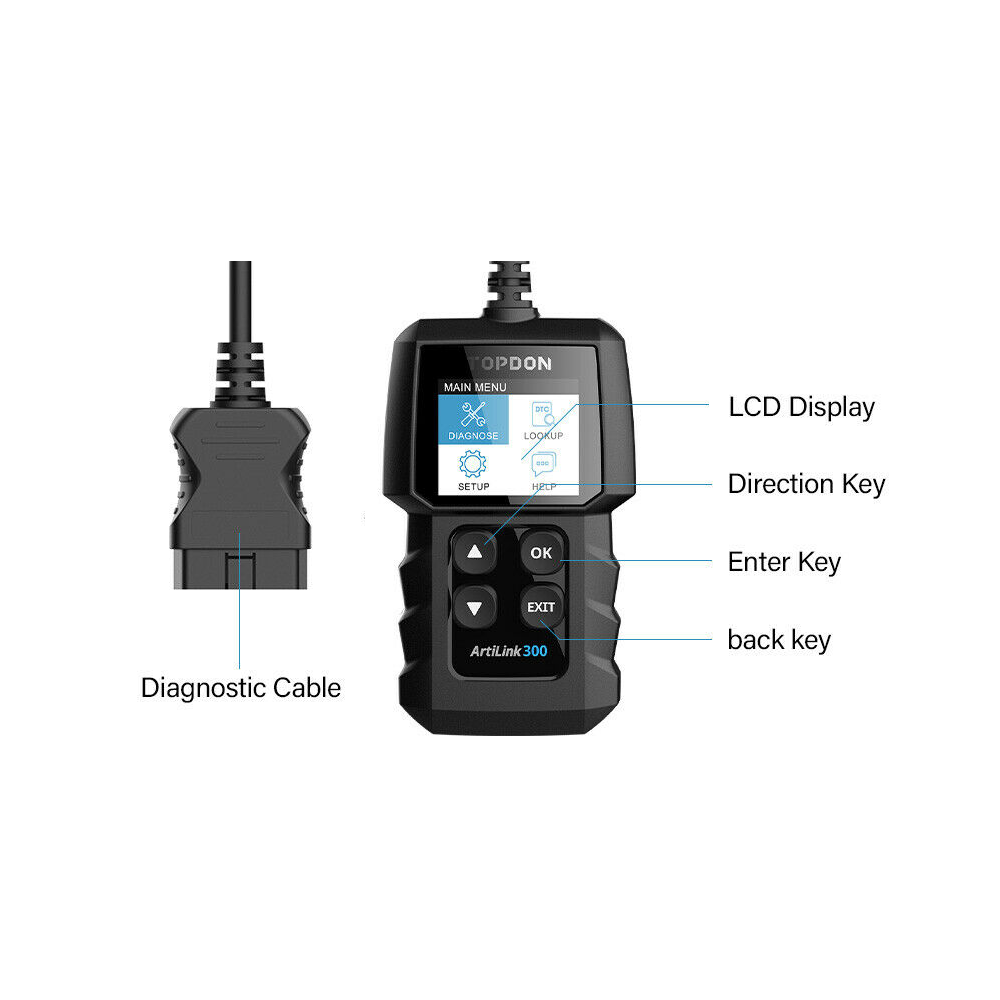

LCD Color Screen:

Displays Test Results Clearly And Saves Power.

DTC Lookup:

Simply Select The Error Code, To Get An In-Depth Explanation Of Its Meaning. Make In-Time Decisions About Possible Repairs. – Save The Trouble Of Looking For The Meaning Of A Diagnostic Trouble Code Online.
Updates: Free Lifetime Updates Via Official Website: Https://Www.Topdon.Com/

Topdon ArtiLink 300 Specifications:
Display: 1.77 In Color Display
Operating Voltage: 9~18V
Storage Temperature: -20°C ~70°C (-4°F ~158°F)
Working Temperature: 0°C ~50°C (32°F ~122°F)
Dimensions: 119 * 71.7 * 23.3 Mm (4.68 * 2.82 * 0.91 In)
Length: 1050 Mm (41.34 In)
Product Weight: 210g (0.46 Lb)

What’s in the box
1x ArtiLink 300 Code Reader
1x Quick Start Guide
1x User’s ManualEngine scanner
